Heavy-Duty Positive Displacement Pump for Abrasive, Viscous, Corrosive & High-Solids Fluids
| Model | CI-OP8050-4HPFL |
|---|---|
| Power | 4 HP (≈3 kW) TEFC Electric Motor (IE1 Efficiency) |
| Max Flow | Up to 5000 L/h (≈83 L/min) – hose/size dependent |
| Max Pressure | Up to 15 bar (218 PSI) |
| Hose Size | ID 13–40 mm (½"–1½"), wall 8–12 mm (common 25 mm ID) |
| Materials | Orange Painted Housing/Rotor (Cast Aluminum/Iron), Blue TEFC Motor, Replaceable Hose (NR, EPDM, NBR, Viton, etc.), Stainless/Steel Ports |
| Voltage/Phase | 230/400V, 3-Phase (single-phase options) |
| RPM | ~1400–1500 (4-pole) |
| Design | Horizontal Industrial Peristaltic, Roller Compression, Self-Priming, Reversible, No Seals/Valves |
| Solids Handling | Up to hose ID (abrasives/slurries excellent) |
| SKU | CI-OP8050-4HPFL |

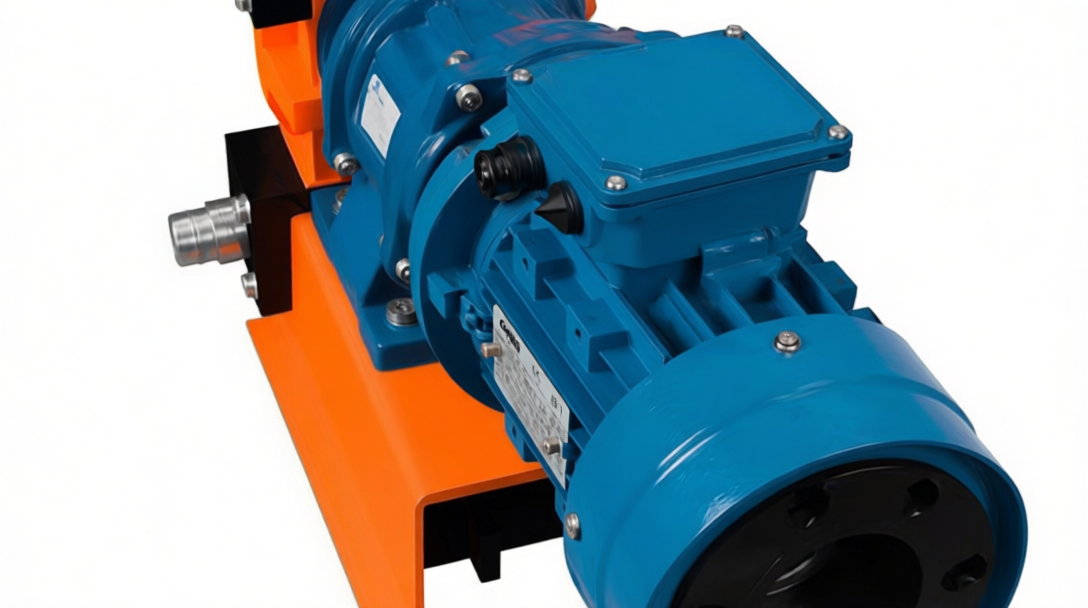

The CI-OP8050-4HPFL is a robust industrial peristaltic hose pump featuring a bright orange pump head/housing and blue TEFC motor, designed for continuous heavy-duty transfer of challenging fluids. The positive displacement roller design compresses a flexible hose, ensuring zero contact between the fluid and pump internals (except the replaceable hose) — perfect for abrasive slurries, viscous pastes, corrosive chemicals, or shear-sensitive products.
Key advantages include dry self-priming up to 8-9 m, reversible flow direction, high pressure capability, and low maintenance (only hose replacement needed). Mounting base for stable horizontal installation; IP55/IP65 motor protection.
Understand how the pump performs: Flow is nearly constant with pressure (positive displacement); varies by hose size & speed. Here are typical performance curves for the CI-OP8050-4HPFL and similar industrial peristaltic models:
Here are real-world examples of pump performance curves: Here are helpful installation and diagram examples for industrial peristaltic hose pumps:Q: Is the pump self-priming? A: Yes — dry self-priming up to 8-9 m suction lift; excellent for suction from tanks or pits.
Q: What fluids can it handle? A: Abrasive slurries, thick pastes, corrosive chemicals, shear-sensitive products; select hose material (e.g., EPDM for chemicals, NR for abrasives) accordingly.
