Centrifugal Pumps Technical Specifications

Horizontal single-stage end-suction centrifugal pumps — reliable, energy-efficient solutions for water supply, irrigation, HVAC, wastewater, and industrial processes.

Similar Models

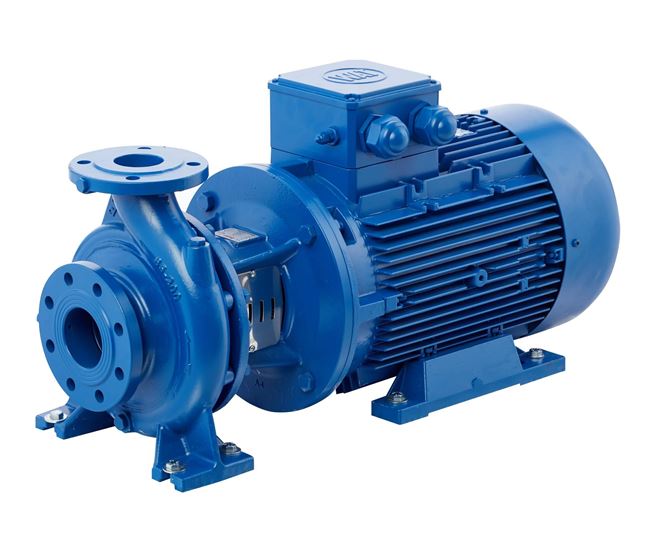

Blue centrifugal pump side view

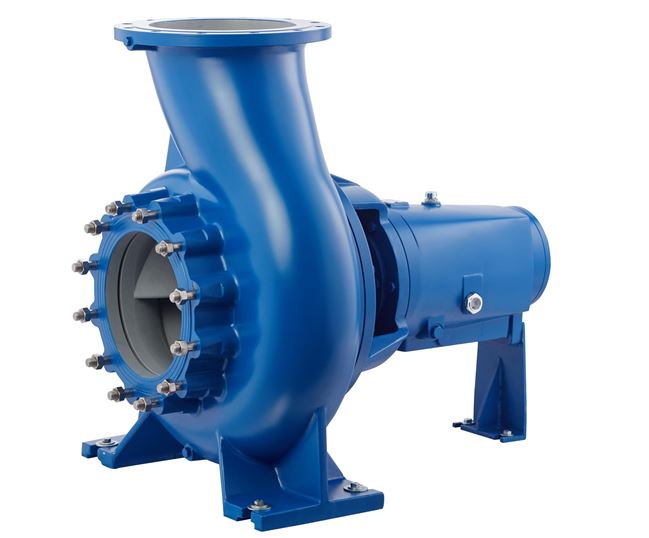

Industrial blue pump with motor

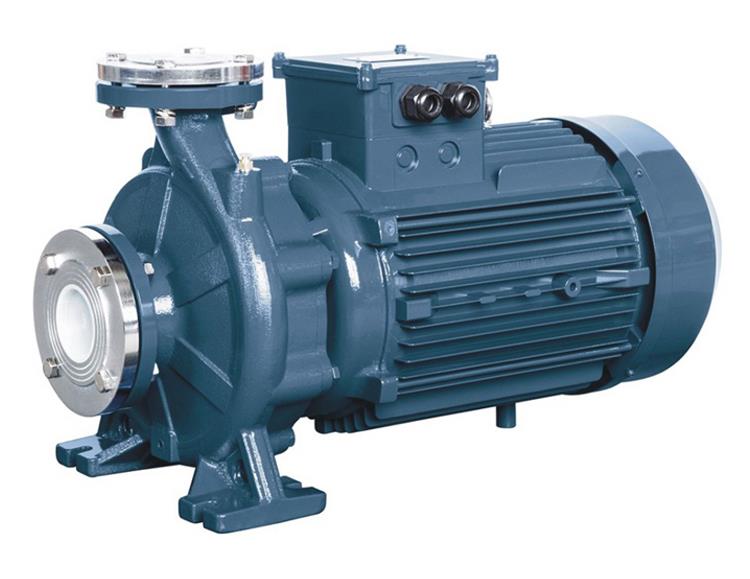

Close-coupled centrifugal pump

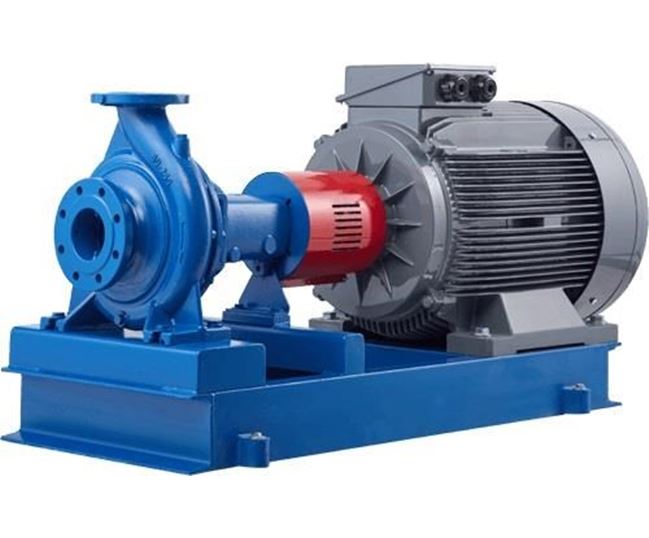

EN733 standard blue pump

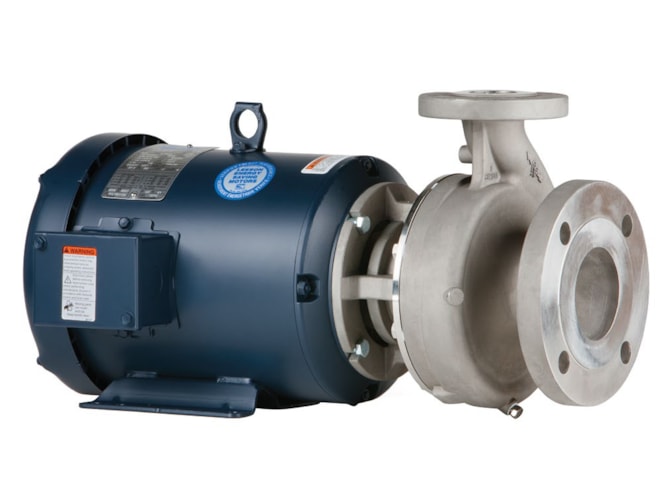

Horizontal close-coupled pump

Key Technical Specifications

General Design

  • Type

    Horizontal, single-stage, end-suction centrifugal

  • Mounting

    Close-coupled (direct to motor)

  • Standards

    EN 733 / ISO 2858 compliant (dimensions)

Materials

  • Casing/Body

    Cast iron (epoxy-coated blue)

  • Impeller

    Cast iron / bronze (closed type)

  • Shaft

    Stainless steel AISI 304/316

  • Seal

    Mechanical (ceramic/carbon or SiC)

Performance Range

  • Flow Rate (Q)

    10–100 m³/h (typical models)

  • Head (H)

    10–60 m

  • Max Pressure

    10–16 bar

  • Liquid Temp

    0–80°C (up to 120°C special)

  • Efficiency

    60–80%

Motor & Connections

  • Motor

    3-phase TEFC, 1450/2900 RPM, 3–7.5 kW

  • Connections

    Flanged PN10/PN16, DN50–DN100

  • Applications

    Water, HVAC, irrigation, industrial, wastewater

Supporting Visuals

Centrifugal pump performance curve
Typical Head vs Flow Performance Curve
Exploded view of centrifugal pump parts
Exploded View – Key Components
Sample pump curve multiple lines
Performance Curve with Multiple Impeller Sizes

Centrifugal Pumps

Centrifugal pumps are designed to transport liquids using rotational energy from an impeller. They are ideal for clean water, irrigation, HVAC systems, industrial process water, and municipal supply.
