Reliable Reprime Capability for Irrigation, Sprinkling & Water Transfer – Engineered for Efficiency & Longevity
| Model | GT-CC150-1.5HP (Goulds GT15 equivalent) |
|---|---|
| Power | 1.5 HP NEMA ODP Electric Motor |
| Max Flow | Up to 110 GPM (at low suction lift) |
| Max Head | Up to 128 ft (≈39 m) |
| Inlet/Outlet | 1.5" NPT Suction & Discharge |
| Materials | Cast Iron Casing (electro-coat painted), Glass-Filled Composite Impeller, Carbon/Ceramic Mechanical Seal |
| Voltage/Phase | 115/230V, Single Phase |
| RPM | 3500 |
| Design | Self-Priming Centrifugal, Back Pull-Out, Reprime up to 25 ft suction lift |
| Max Suction Lift | 25 ft (with reprime capability) |
| Max Temp | 140°F (60°C) |
| Max Pressure | 125 PSI |
| Weight | Approx. 45-55 lbs |

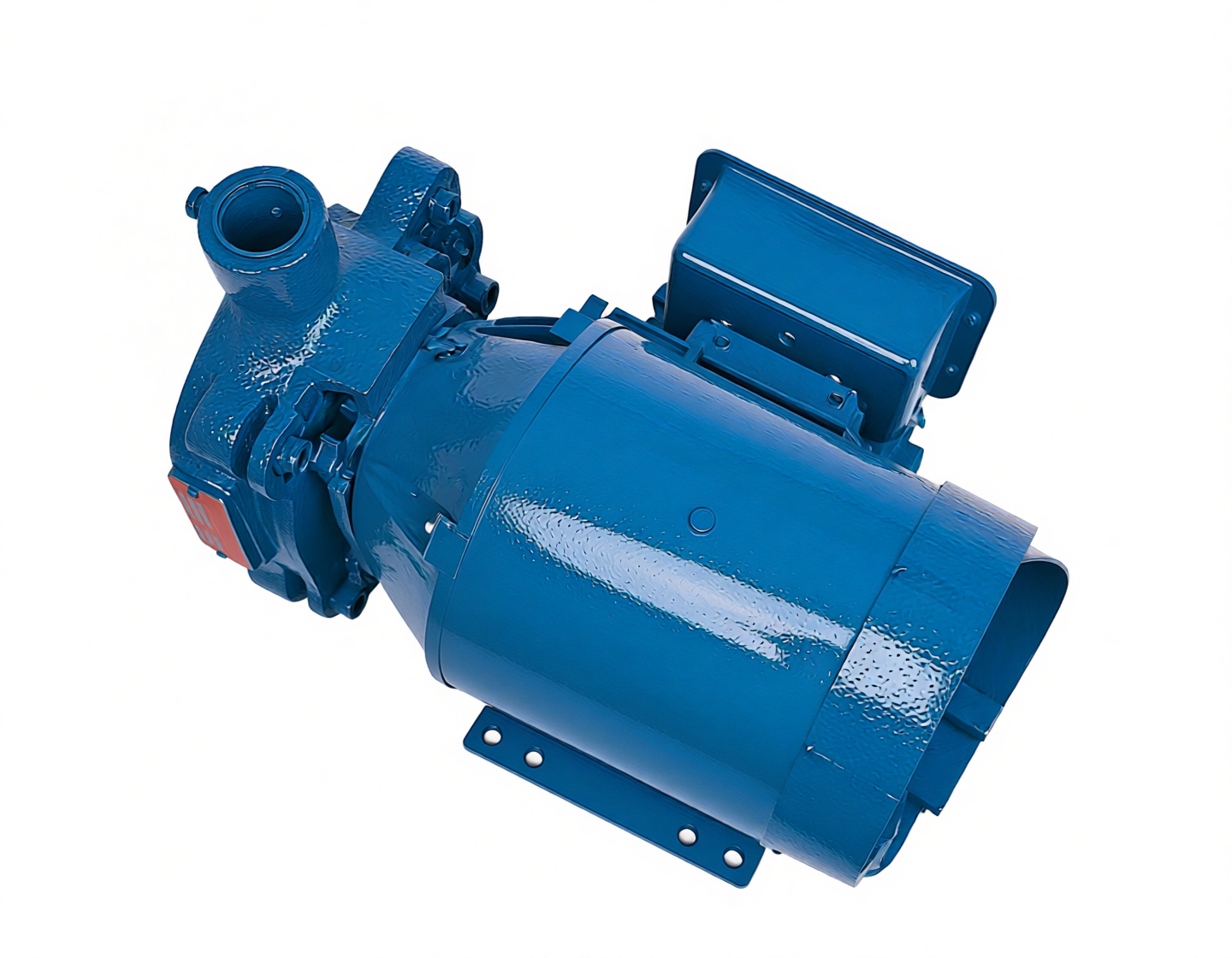

The GT-CC150-1.5HP is a robust, self-priming centrifugal pump engineered for efficiency and longevity in demanding applications like irrigation systems. Featuring a glass-filled composite impeller for abrasion resistance, carbon/ceramic mechanical seal, and full electro-coat paint for maximum corrosion protection. Its reliable reprime capability (up to 25 ft) ensures quick recovery if prime is lost, with a service-friendly back pull-out design.
Cast iron construction with NEMA ODP motor for continuous duty. Ideal where suction lift or intermittent prime loss occurs – no need for constant re-priming after initial setup.
Typical performance for the GT-CC150-1.5HP: High flow at low head for irrigation, with strong reprime and suction capability.
Standard Performance Curve (up to 110 GPM)
Reference: Flows to 110 GPM at 5 ft suction lift, heads to 128 ft (Goulds GT15 series equivalent).
Reprime & Suction Lift Performance
Reprime up to 25 ft suction lift after initial prime – ideal for variable irrigation setups.
Q: Is this pump self-priming? A: Yes – self-priming after initial prime, with reprime capability up to 25 ft suction lift for reliable operation in irrigation setups.
Q: What liquids can it handle? A: Clean water primarily; temperatures up to 140°F. Not for aggressive chemicals – consult for compatibility.
