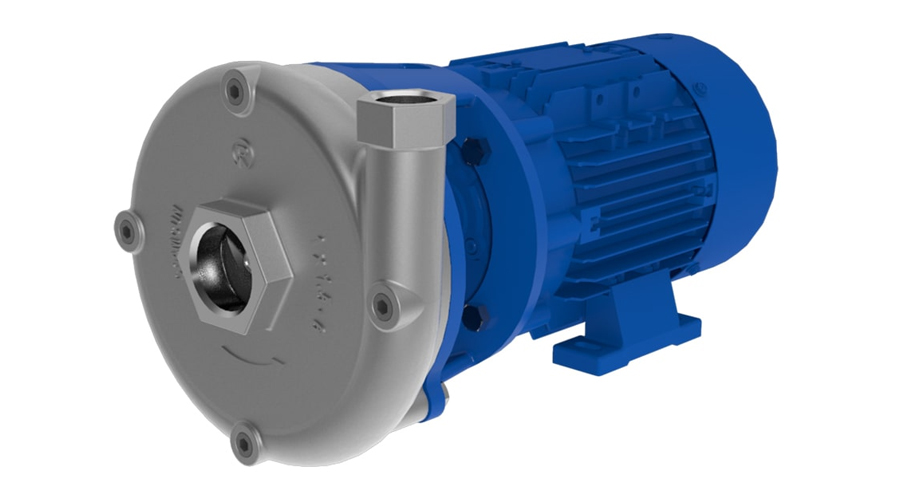

Sanitary Centrifugal Pump with Semi-Open Impeller for Gentle, Reliable Hygienic Fluid Transfer
| Model / Series | GT-HYGI100-SS304 (1600 Series) |
|---|---|
| Impeller Type | Semi-Open (non-clogging, gentle handling) |
| Power | 1–5 HP (0.75–3.7 kW) options, TEFC / washdown motor |
| Max Flow | Up to 100 m³/h (≈440 GPM) – model dependent |
| Max Head | Up to 50 m (≈164 ft / 72 PSI) |
| Inlet/Outlet | Tri-Clamp, DIN, SMS (e.g., 1.5"–3" common hygienic fittings) |
| Materials | SS304 wetted parts (electropolished), optional SS316L, EPDM/Silicone seals |
| Voltage/Phase | 230/460V, 3-Phase (1-Phase options available) |
| RPM | 2900 / 3500 |
| Design | Horizontal close-coupled, end-suction, semi-open impeller, hygienic/sanitary |
| SKU | GT-HYGI100-SS304 |
The 1600 Series GT-HYGI100-SS304 is a close-coupled hygienic centrifugal pump featuring a semi-open impeller in stainless steel SS304. Designed for sanitary applications requiring gentle product handling, non-clogging performance with light particulates/viscous fluids, and full CIP/SIP compatibility. Ideal for dairy, beverages, food processing, and pharmaceutical transfer where hygiene and reliability are critical.
Semi-open impeller design prevents clogging while maintaining smooth flow; electropolished surfaces (Ra <0.8 μm typical), quick-clamp connections, and back-pullout for easy maintenance without disturbing piping. Non-self-priming; requires flooded suction or priming assist.
Q: Why semi-open impeller? A: Provides non-clogging performance for fluids with light solids/viscosity while remaining gentle and hygienic—better than closed for some sanitary apps.
Q: Is it suitable for CIP/SIP? A: Yes – smooth surfaces, drainable, and designed for automated cleaning/sterilization cycles up to typical limits (consult seals for exact temps).
.png)
Discover the 1600 Series for superior hygienic performance in your process. Contact us for quotes, custom configs, or datasheets.
