GT-SS150-SCCF1.5HP Stainless Steel Centrifugal Pump

Product Overview

The GT-SS150-SCCF1.5HP is a premium 316L stainless steel close-coupled end-suction centrifugal pump designed for reliable, corrosion-resistant fluid transfer in hygienic and industrial environments. Features a high-efficiency enclosed impeller, Viton mechanical seal, and NEMA TEFC motor for long service life and easy maintenance.

• ✓ 316L stainless steel wetted parts for superior corrosion resistance
• ✓ Compact close-coupled design – space-saving and easy to install
• ✓ High-efficiency enclosed impeller – no adjustments needed over time
• ✓ Suitable for food/beverage, pharma, chemicals, clean water, and light industrial use
• ✓ Non-self-priming – requires flooded suction

Full Product Description

Capacities up to 170 GPM, heads up to 150 ft, max working pressure 125 PSI. Viton seal handles temperatures to 250°F. Ideal for hygienic applications requiring CIP compatibility and minimal downtime.

Technical Specifications

Model	GT-SS150-SCCF1.5HP (Goulds NPE Equivalent)
Horsepower	1.5 HP
Voltage / Phase	208-230/460V, Three Phase
Connections	1-1/4" NPT Suction / 1" NPT Discharge
Max Capacity	170 GPM
Max Head	150 ft
Max Pressure	125 PSI
Max Temp	250°F (121°C) with Viton Seal
Motor	TEFC Premium Efficient, 3500 RPM

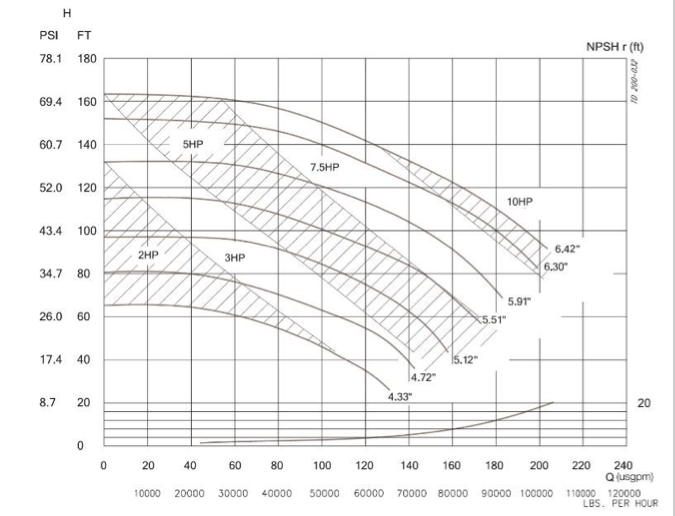

Performance Curve

Total Dynamic Head vs. Capacity (GPM) – 3500 RPM Operation

Representative curve for similar Goulds NPE 1x1.25-6 series pump. Contact Grundtec for model-specific datasheet if needed.
