Pneumatic, Reliable Transfer for Low-Viscosity Fluids – Cast Iron Construction for Industrial Durability

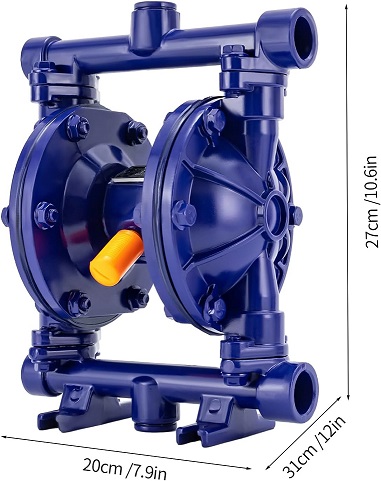

.jpg)
| Model | SP-SS40-FL304 (QBY-15Z) |
|---|---|
| Power Source | Air-Operated (Pneumatic) |
| Max Flow Rate | 0 - 4.4 GPM (0 - 1 m³/h) |
| Max Head | Up to 164 ft (50 m) |
| Inlet/Outlet | 1/2" (12.7 mm) NPT |
| Air Inlet | 1/4" (6.35 mm) |
| Materials | Cast Iron Body (Plastic Sprayed), Double Diaphragm Design |
| Average Air Consumption | 0.3 m³/min (10.59 ft³/min) |
| Max Suction Lift | Up to 16.4 ft (5 m) |
| Max Temperature | 150°F (66°C) |
| Max Pressure | 115 PSI |
| Dimensions | 12" L x 7.9" W x 10.6" H (31 x 20 x 27 cm) |
| Weight | Approx. 8.38 lbs (3.8 kg net) / 8.82 lbs (4 kg gross) |
| Color | Purple (or Blue variant) |
The SP-SS40-FL304 is a compact, air-operated double diaphragm pump (QBY-15Z series) designed for safe, efficient transfer of low-viscosity fluids in demanding industrial environments. Powered by compressed air (no electrical power needed), it features a sturdy cast iron body with plastic spraying for corrosion and wear resistance. Ideal for handling water, glue, water-based coatings, organic solvents, and low-viscosity petroleum fluids like diesel, kerosene, motor oil, or waste oil.
Double diaphragm design ensures reliable, leak-free operation even with abrasive or shear-sensitive fluids. Not suitable for strong acids, alkalis, or highly corrosive liquids – always check compatibility.
Flow rate up to 4.4 GPM with adjustable air pressure; max head 164 ft and suction lift 16.4 ft make it versatile for transfer, filling, or circulation tasks.

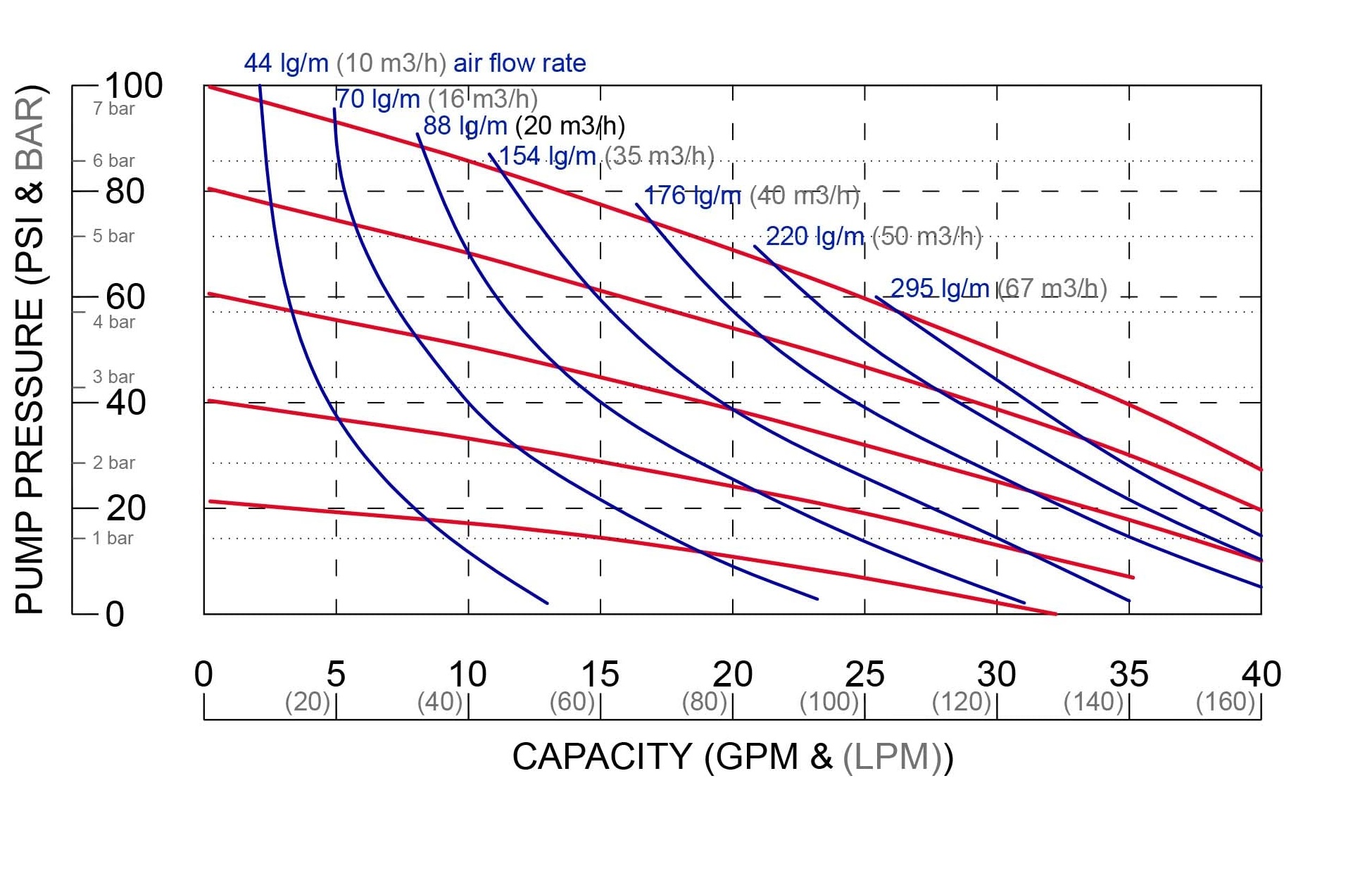

Typical Diaphragm Pump Performance
.jpg)
Adjustable via air supply pressure – ideal for precise control in chemical and petroleum applications.
Q: Is this pump suitable for corrosive liquids? A: No – not for acids, alkalis, or strong corrosives. Best for low-viscosity petroleum fluids, solvents, water-based coatings, etc.
Q: Does it require electricity? A: No – fully pneumatic (air-operated). Requires clean compressed air supply (1/4" inlet).
Q: Can it run dry? A: Yes – diaphragm pumps tolerate dry running better than many centrifugal types, but monitor air consumption.
High-flow centrifugal pump – for larger industrial & chemical applications.
View Details
Contact our team for quotes, compatibility checks, air supply recommendations, or spare parts (diaphragms, valves) on the SP-SS40-FL304 or any of our diaphragm and industrial pumps.
